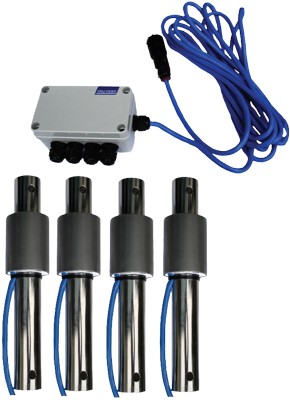

Tru-Test Load Cells
These load cells have a 10,000 lb capacity. Individual cabling allows the load cells to be tailored for use with any weighing installation.
UPC: 726237147850
$1,470.00
Product ID: XHD2
Description
Tru-Test weighing equipment is regarded as the most reliable, rugged, and long-lasting option on the market. The XHD2 Load Cells are specifically designed for use with large chutes or in applications that require extra weight capacity. This load cell system weighs at 5 or 10 lb resolutions and is ideal for permanent, manual, or hydraulic squeeze chutes or multiple animal scales with a maximum capacity of 10,000 lbs per set of 4 (2,500 lbs per cell). Each load cell is individually wired with a 26’ cable. A junction box with wire connectors makes installation fast and easy, allowing good wire to wire contact. This cell system is fully water, dirt, and rodent proof. A set of XHDBRACK brackets (sold separately) are required for attachment to a squeeze chute or platform. These brackets are designed to be welded to the chute/platform.
| Product ID | Qty | |
|---|---|---|
| xhd2 |
* Product may vary from information, pictures, or videos shown. Please consult Priefert for more information.
Features
- XHD2 Load Cells are specifically designed for use with permanent, manual, or hydraulic squeeze chutes or multiple animal scales with a maximum capacity of 10,000 lbs per set of four.
- This load cell system weighs in 5 or 10 lb resolutions and features a 2-year warranty.

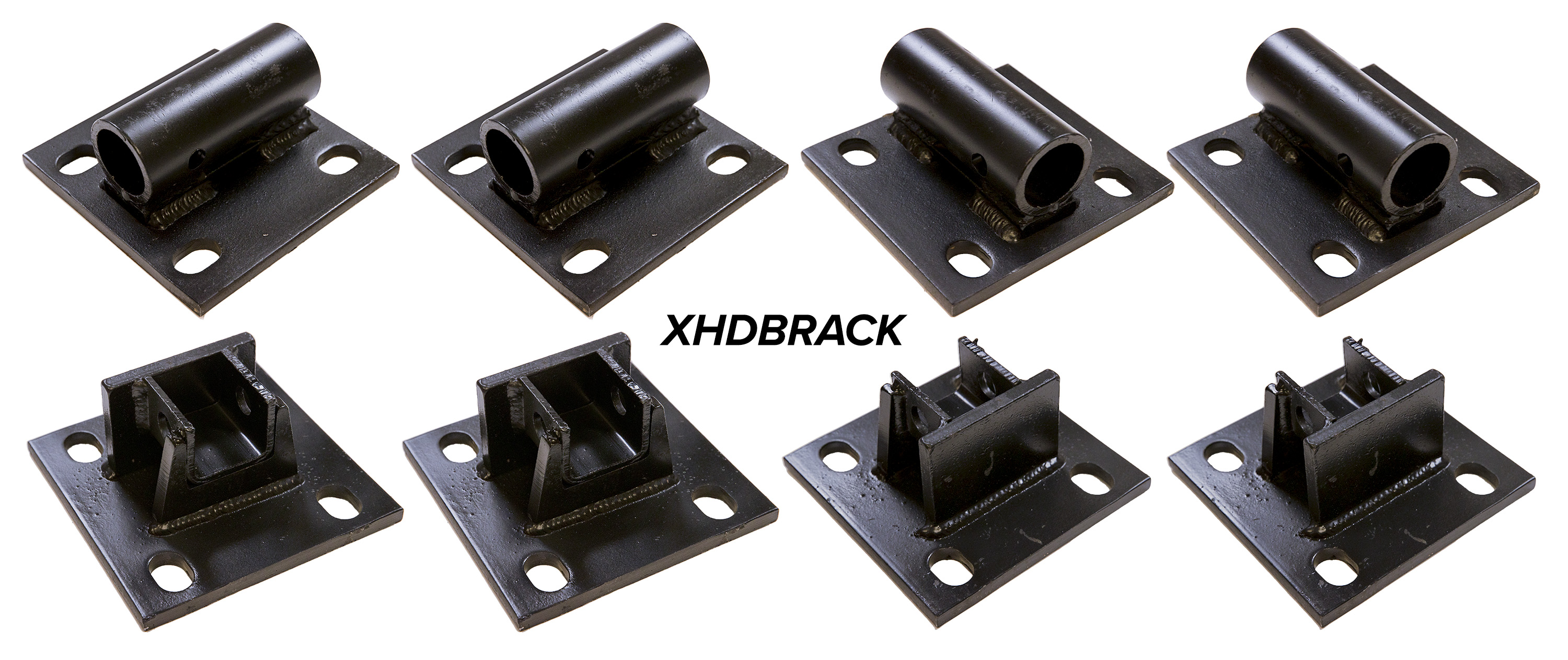

- Placing these cells under a chute or platform requires a set of XHDBRACK brackets (sold separately). These brackets are designed to be welded onto the chute or platform.
- Each individual cell has a maximum capacity of 2500 lbs and is individually wired with a 26 ft cable.
- This system is fully water, dirt, and rodent proof.
Specs
- Load Cell Length: 11”
- Cable Length: 26’
- HDXBRAC (sold separately) required for use with Priefert Squeeze Chutes
- Load Cell Diameter: 1.5”
- Total Capacity: 10,000 lbs (2,500 lb per cell)
