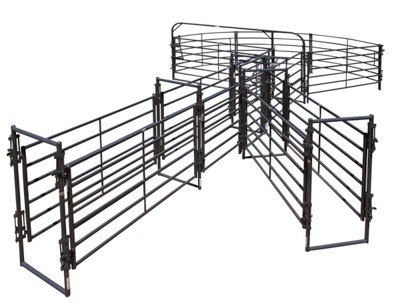

135 Degree Premier Open Sweep with 24’ Alley with Sorting Alley
This rugged, completely reversible crowding system includes a 135 degree sweep and a 24’ fixed alley and side sorting alley.
UPC: 726237170650
$3,200.93
Product ID: PS13520-5
Description
This rugged, completely reversible crowding system includes a 135 degree sweep and a 24’ fixed alley and side sorting alley. Whether you are using it as part of a permanent or portable working corral, it provides a durable and versatile crowding system that helps reduce the labor needed for working cattle. This system is built with Premier Panels, our number one selling cattle panel. By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems. Sturdy pin connectors are used to assemble the sweep tub and alley components. The alley frame is designed to allow for quick and easy connection to Priefert’s Premier Alley Panels with pin connectors. The Alley Frames maintain the strength and support of the 28” wide working alley and the “no-back” Alley Stop can be easily adjusted to prevent cattle from backing out of the alley. The side alley can be used for sorting or as a lead up to a calf table. The attractive and durable Architectural Grade Powder Coat Finish with UV inhibitors will add years of life to your investment by helping this system resist rust, scratches and fading.
| Product ID | Qty | |
|---|---|---|
| ps13520-5 |
* Product may vary from information, pictures, or videos shown. Please consult Priefert for more information.
Features
- This Premier Open Sweep is great for permanent corrals and versatile enough for portable applications.
- By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.
- Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra stability.
- The 10’ wide Premier Sweep Gate works as the sweep gate, pushing cattle into the working alley. This gate features a 7’ tall bow frame for added stability and a Double Piston Lever Latch.
- Powder-coated Alley Frames help maintain the strength and support of the 28” wide fixed alley.
- With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
- 135 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
- “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.
- Sturdy pin connectors provide secure connection points that allow for quick and easy assembly of the sweep tub and alley components.
- The alley frame is designed to allow for secure connection to Priefert’s Premier Alley Panels with pin connectors.
- This Premier Kit includes a side alley that can be used for a sorting alley or as a lead up to a calf table.
- Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
Specs
- Alley Length: 24’
- Panel Height: 64”
- Bow Gate Frame Height: 7’ (approximate height)

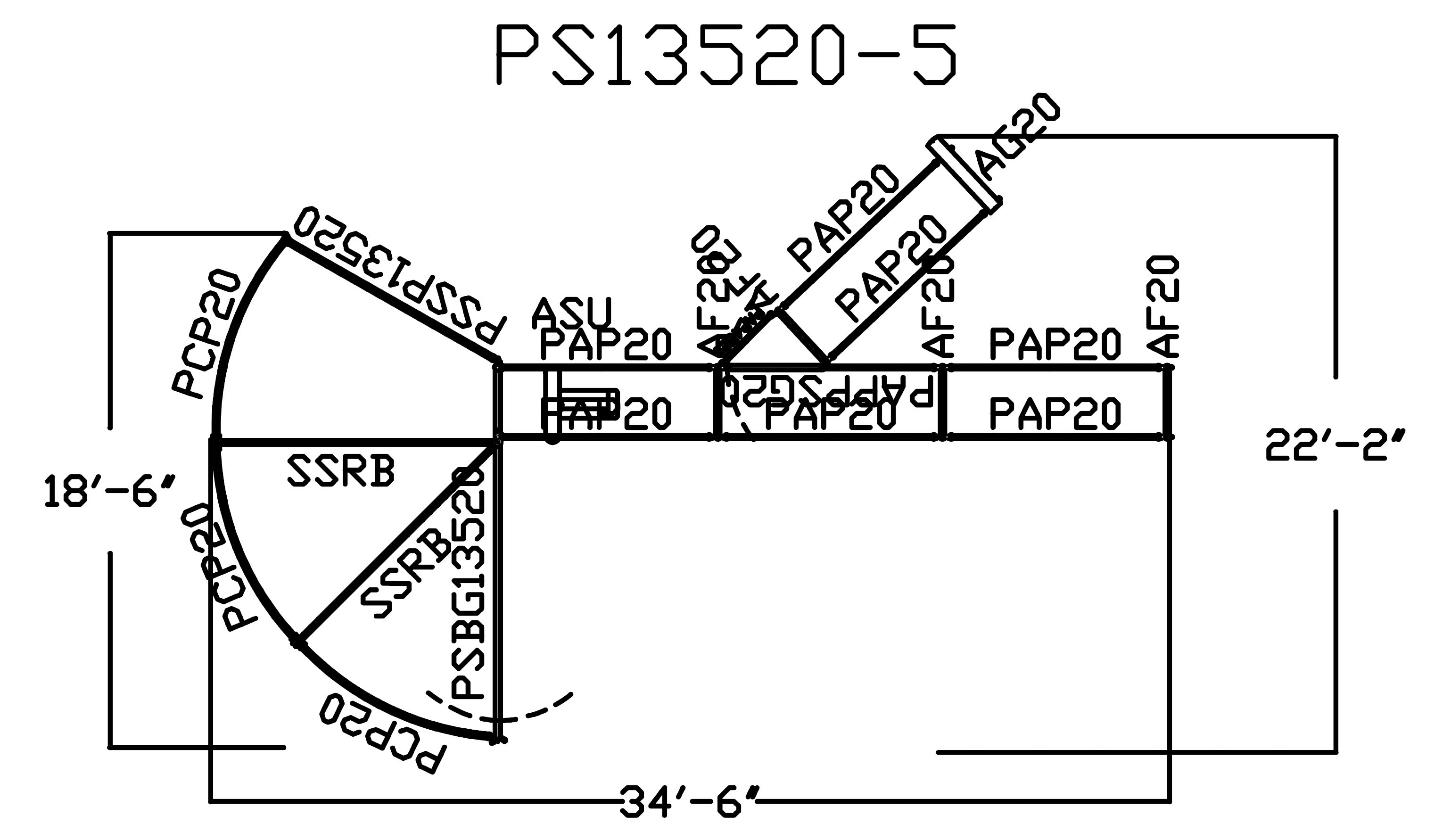

- PS135-5 includes: 1- 10’ Premier Sweep Gate with Alley Frame (PSBG13520), 3 – Premier Sweep Curve Panels (PCP20), 1 - Premier Sweep Straight Panel (PSSP13520), 2 – Sheeted Sweep Radius Bars (SSRB), 7- 8’ Premier Alley Panels (PAP20), 1 – Premier Preg Panel (PAPPSG20), 1 – Premier Alley Panel for 45 Degree Sort (PAP4520), 4- Alley Frames (AF20), 1 – Premier Alley Gate (AG20) and 1- “no-back” Alley Stop (ASU)
- Color: Grey
- Alley Frame Inside Height: 74.75”
- Inside Alley Width: 28”
- Premier Sweep Gate constructed from 1.9” OD Round™ 16 gauge tubing with 1.050” OD single piece vertical stay, bow frame constructed from 2.375” OD 12 gauge tubing.
- Architectural Grade Powder Coat Finish
