Wishbone Carriage

Priefert equipment

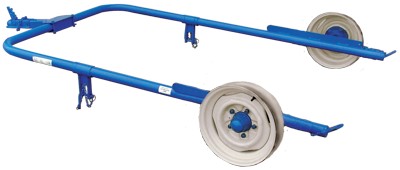

Wishbone Carriage

Priefert’s wishbone carriage is simply the easiest one-man chute loading system on the market.

UPC: 726237015562

$533.12

Product ID: CA04-2

Description

Priefert’s wishbone carriage is simply the easiest one-man chute loading system on the market. This innovative carriage makes moving your chute or calf table a snap, allowing you to quickly transport equipment from one location to another to work multiple herds. Attaching the carriage to the chute is simple, just lift the tongue of the carriage and roll it toward the rear of the chute until you are able to insert the axel tabs into the receiver (receiver sold separately). Once the axle tabs are engaged, push down on the carriage to lock it into place and secure with pins. Now the tongue of the carriage can be lifted and attached to the 2” receiver ball on your vehicle for quick and easy transport.
Item NumberDescriptionPrice
CA04-2Carriage Receiver without Tires
CA04-2WTCarriage Receiver with Tires
* Product may vary from information, pictures, or videos shown. Please consult Priefert for more information.

Features

  • Wishbone Carriage is the easiest means of moving Priefert’s S0191, or S04 Squeeze Chute or Priefert’s Calf Table.
  • Carriage connects to a 2” ball coupler for easy transport.
  • Carriage can be easily attached or removed from the chute or calf table by one man.
  • Requires appropriate receiver for use with Model S0191 or S04 Squeeze Chutes (Receivers sold separately). No receiver necessary for attachment to Calf Table.

Specs

  • Length: 113.5”
  • Weight: 186 lbs (All weights approximate)
  • 2” ball coupler
  • Requires Carriage Receiver CRS01-2 to transport Model S0191 Squeeze Chute (Receiver sold separately)
  • No receiver required to transport Calf Table (CT)
  • Fits only chutes manufactured after 08/05/2004
  • Width: 71.5”
  • Available with mounted tires (CA04-2WT) or without (CA04-2)
  • Requires Carriage Receiver CRS0164 to transport Model S01 Squeeze Chute (Receiver sold separately)
  • Requires Carriage Receiver CRS04-2 to transport Model S04 Squeeze Chute (Receiver sold separately)
  • Inflate tires to 12lb maximum pressure
  • Dip painted Priefert Blue

Pictures

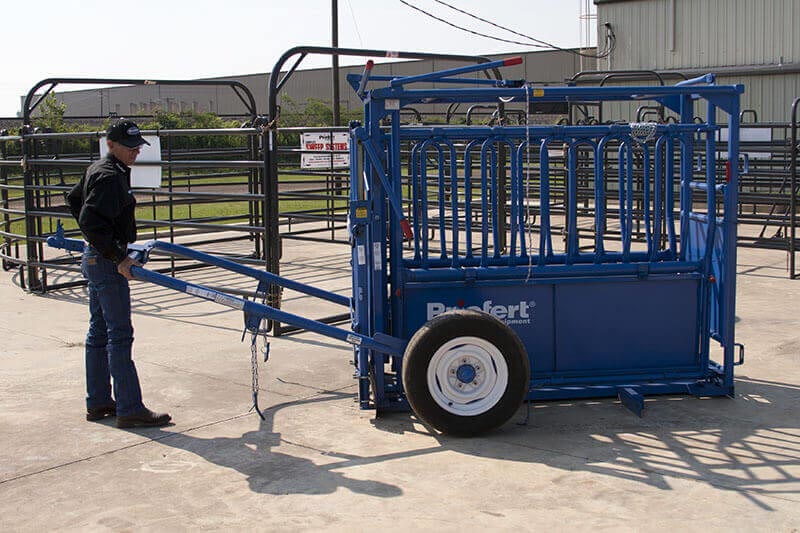

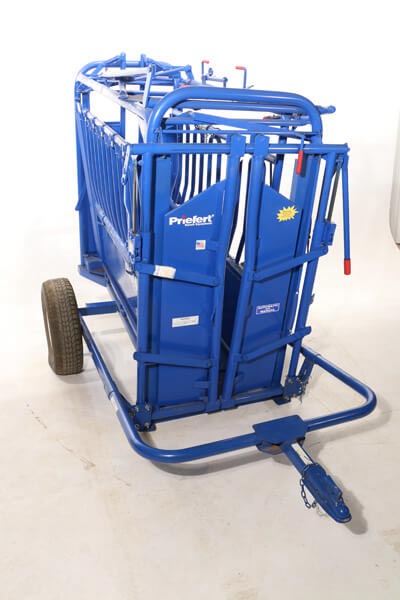

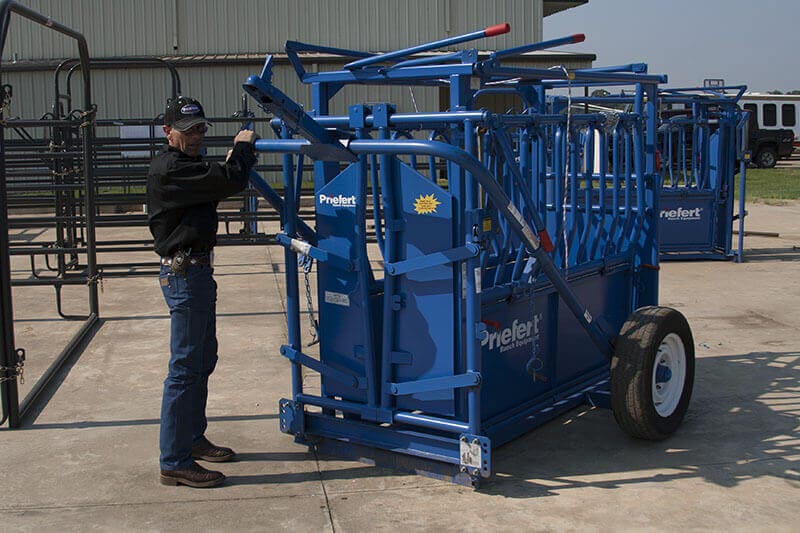

Wishbone Carriage - Image 0
Wishbone Carriage - Image 1
Wishbone Carriage - Image 2
